MEP BIM Services

Accurate BIM models for mechanical, electrical, and plumbing systems that support coordination, reduce clashes, and keep construction on schedule.

• Revit MEP modeling for HVAC, electrical, plumbing, and fire protection systems
• Multi-discipline coordination with architectural and structural models

HSE Contractors builds coordinated MEP BIM models that help architects, engineers, and contractors visualize mechanical, electrical, and plumbing systems within the building environment before construction begins. When all systems are modeled in a single 3D environment, the conflicts that usually surface on site get resolved on screen instead.

MEP BIM Services for Coordinated Building Systems

Modern buildings contain complex mechanical, electrical, plumbing, and fire protection systems that all have to fit within tight structural and architectural spaces. Ceiling cavities, wall chases, and vertical shafts are shared by every trade. When each system is designed separately using traditional 2D drawings, conflicts between them do not show up until the installers are standing in front of them on site.

MEP BIM modeling puts all of those systems into a single coordinated 3D environment. HSE Contractors develops these models in Autodesk Revit so project teams can visualize how the systems interact, catch routing conflicts early, and plan installations before anyone picks up a wrench. Field rework on MEP systems alone can account for 3% to 5% of a commercial project budget. Coordinated BIM models cut that number down.

MEP Systems We Model

HSE Contractors develops detailed BIM models for all building systems that need to be coordinated before installation begins.

Mechanical and HVAC BIM Modeling

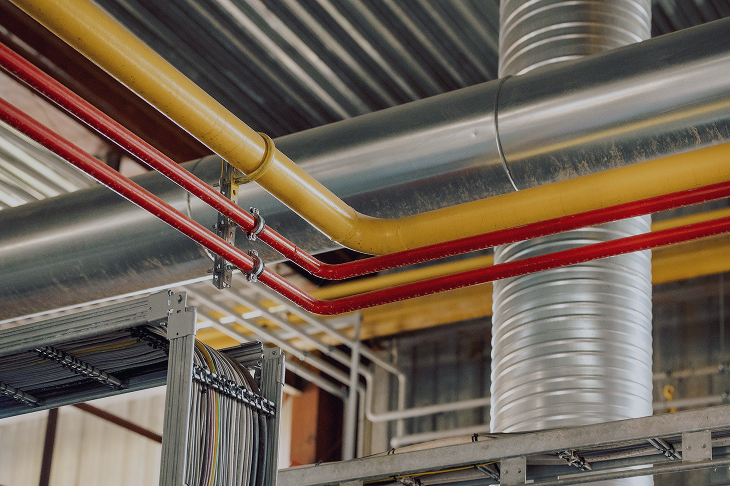

HVAC BIM models include ductwork routing, air handling units, chillers, mechanical equipment, and ventilation systems. Accurate models make sure that mechanical systems fit within the building structure and coordinate with other systems sharing the same space.

Electrical BIM Modeling

Electrical BIM models include lighting layouts, cable trays, conduit routing, panels, and electrical distribution systems. Coordinated electrical models help prevent conflicts with mechanical ductwork, plumbing runs, and structural framing.

Plumbing BIM Modeling

Plumbing BIM models include water supply piping, sanitary drainage systems, and stormwater systems. Coordinated models make sure pipe routing, slope, and clearances are correct before installation starts.

Fire Protection BIM Modeling

Fire protection BIM models include sprinkler piping networks and fire suppression systems. These models help verify compliance with design standards and coordination with other building systems in the same ceiling and shaft spaces.

MEP Coordination and Clash Detection

Coordinated BIM models allow project teams to detect conflicts between building systems before construction begins. HSE Contractors performs clash detection between MEP, structural, and architectural models using Navisworks.

Each clash is logged with its location and the disciplines involved. The project team reviews the report and HSE updates the models based on the agreed resolutions. Identifying system clashes early reduces costly rework and construction delays. It also keeps the coordination meetings focused on real issues instead of spending time finding problems that should have been caught in the model.

BIM Deliverables for MEP Projects

MEP BIM modeling generates coordinated models and documentation that project teams use during design and construction. Deliverables depend on the scope of the project and BIM requirements. Most MEP projects include a combination of the following:

• Revit MEP models for mechanical, electrical, plumbing, and fire protection systems
• Coordinated 3D BIM models used for system coordination
• MEP layout drawings extracted from BIM models
• Fabrication and shop drawings for system installation
• Clash detection and coordination reports
• Construction documentation derived from BIM models

Deliverables are aligned with project BIM standards and documentation requirements. If your team uses specific Revit templates, system naming conventions, or coordination workflows, we match those so the models work within your existing process.

Our MEP BIM Modeling Process

HSE Contractors follows a structured modeling process to build coordinated MEP BIM models:

• Reviewing project drawings and system layouts
• Setting up BIM models based on project coordinates and standards
• Developing mechanical, electrical, plumbing, and fire protection models
• Coordinating models with architectural and structural disciplines
• Running clash detection and resolving conflicts
• Performing model quality checks and verification
• Delivering final BIM models and documentation to the project team

This structured process keeps system coordination tight and gives the project team reliable data to plan installations around.

Benefits of MEP BIM Modeling

The practical advantages of using coordinated MEP BIM models come down to catching problems before they cost money in the field.

• Coordination between building systems happens in the model, not on site.
• System conflicts and design issues are flagged before installation begins.
• Mechanical and electrical layouts are visible in 3D, making it easier to plan routing and clearances.
• Construction delays caused by trade conflicts have dropped because the clashes have already been resolved.
• Installation and system maintenance planning get better because the model reflects what is actually being built.

Industries and Project Types

MEP BIM services are used across building sectors that require complex building system coordination.

• Commercial buildings
• Healthcare facilities
• Data centers
• Institutional buildings
• Hospitality projects
• Industrial facilities
• Renovation and retrofit projects

Why HSE Contractors

HSE Contractors has been supporting architects, engineers, and contractors on BIM modeling projects across the country for years, with offices in New York City, Boston, Los Angeles, San Francisco, Miami, Tampa, Chicago, Denver, Dallas, and Washington DC.

Project teams choose HSE for MEP BIM because:

• Experience supporting architects, engineers, and contractors on complex MEP coordination projects
• Revit-based BIM modeling workflows for all four MEP disciplines
• Ability to coordinate MEP models against architectural and structural disciplines on the same team
• Alignment with BIM standards and BIM execution plans
• Reliable communication and consistent project delivery
